The pipeline paradigm

The pipeline module contains the building blocks for implementing the pipeline paradigm. This implementation defines two concepts:

  • Sources: components that acquire data from a device such as a camera or file.

  • Sinks: components that process previously generated data. Their output can be additional information available to other component or an action, as publishing data to a DB or communication middleware.

Pipelines are chained components that perform succesive steps in order to obtain a final product. Each pipeline is composed of only one source of information and one or more sinks that perform operations.

Pipelines are not restricted to video frames, but to keep things simple we will be assuming that each unit of information is a video frame.

Fig. 2 shows the executed model for an example pipeline that tracks objects and performs some kind of activity classification based on their trajectories.

_images/pipeline.png

Fig. 2 Example of a pipeline. Dashed arrows indicate dependencies and solid arrows indicate read and write access to the shared context.

Notice that the pipeline is defined as a directed acyclic graph but it is executed in a sequential order one component at a time. The sequence to grant that dependencies are met is obtained using the topological sorting algorithm.

Another aspect to consider is that there is no direct communication between components, as data is shared through a global context that is passed by reference to each component during initialization.

This decision is inspired in the blackboard design pattern as it reduces the complexity of defining specific interfaces. Also, all data is shared in standard python and scipy data types such as dictionaries and numpy arrays. Each component declares in its API which variables it needs and which variables it creates and/or updates. Note that while this might be convenient for prototyping, it might not be an optimal solution for a production pipeline.

Together with model performance evaluation, processing time and CPU and resource consumption are relevant for the selection of a suitable algorithm.

The execution of a pipeline automatically measures the initial and end time for each iteration and stores some statistics such as best and worst cases, and average processing time. Callbacks are provided for more specific metrics such as memory consumption, that heavily depend on the underlying implementation of each component.

Component organisation

The library proposes the division of components in the aforementioned categories: sources and sinks. These categories can then be furtherly grouped in components for more specific tasks or domains:

  • Background substraction an motion estimation.

  • Object detection.

  • Object tracking.

  • Visualization/anotation.

  • Domain/application-specific.

Thus, the different components inherit the core Source and Sink abstract classes in the pipeline module and are mantained in children modules as indicated in Fig. 3.

_images/package.png

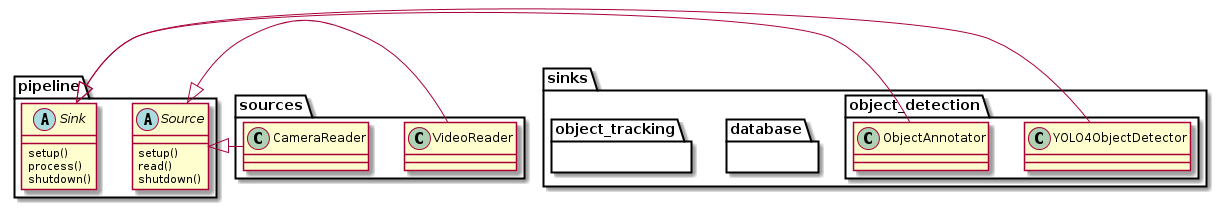

Fig. 3 Example of module organisation

API reference

This module contains the base classes for the pipeline paradigm.

class videoanalytics.pipeline.Pipeline

Class that represents a configuration of components in a pipeline.

execute()

Execute the pipeline. The order of traversal of the components is computed using topological sort.

get_metrics()

Get the average execution time for each block in seconds.

get_total_execution_time()

Get the total execution time in seconds.

optimize()

Optimizing the pipeline consistis in removing isolated blocks from the graph.

plot(ax)

Plot the pipeline graph.

Note: currently only matplotlib is supported.

class videoanalytics.pipeline.Sink(name: str, context: dict)

Abstract class for a sink component.

__init__(name: str, context: dict)

Default constructor.

enable_display(state)

Set/unset display output (does not necesarily apply to all components).

abstract process()

This method is called for each active component in the pipeline.

abstract setup()

This method is called after all components from the pipeline are instanced.

abstract shutdown()

This method is called after the process finished.

toggle_display_enable()

Toggle display output (does not necesarily apply to all components).

class videoanalytics.pipeline.Source(name: str, context: dict)

Abstract class for a source component.

__init__(name: str, context: dict)

Default constructor.

abstract get_progress()

This method is called for components that read from a source of known length.

abstract read()

This method is called until it returns None or the processing is cancelled.

abstract setup()

This method is called after all components from the pipeline are instanced.

abstract shutdown()

This method is called after the process finished.
